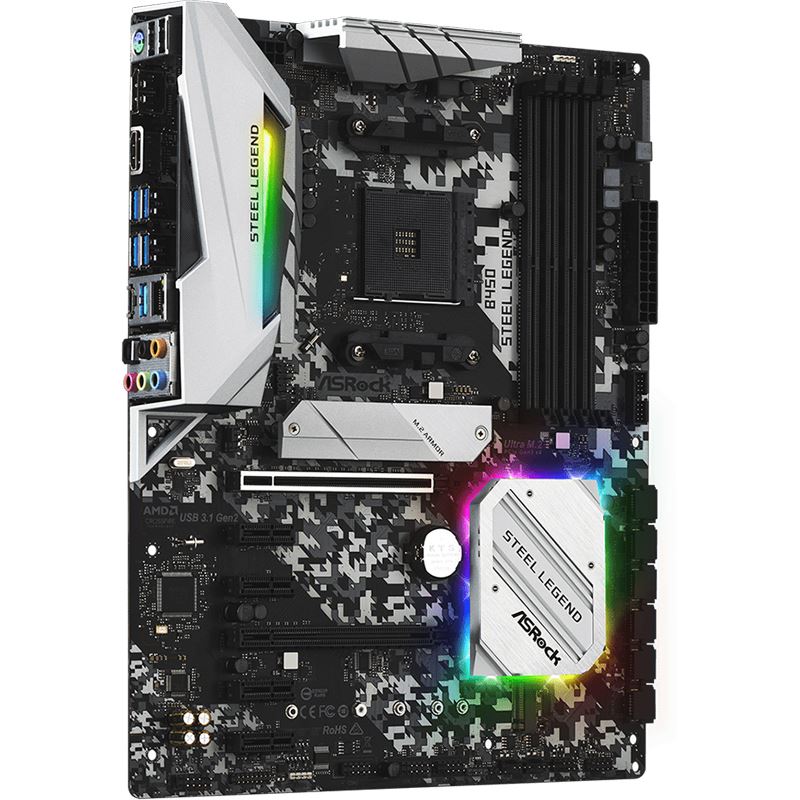

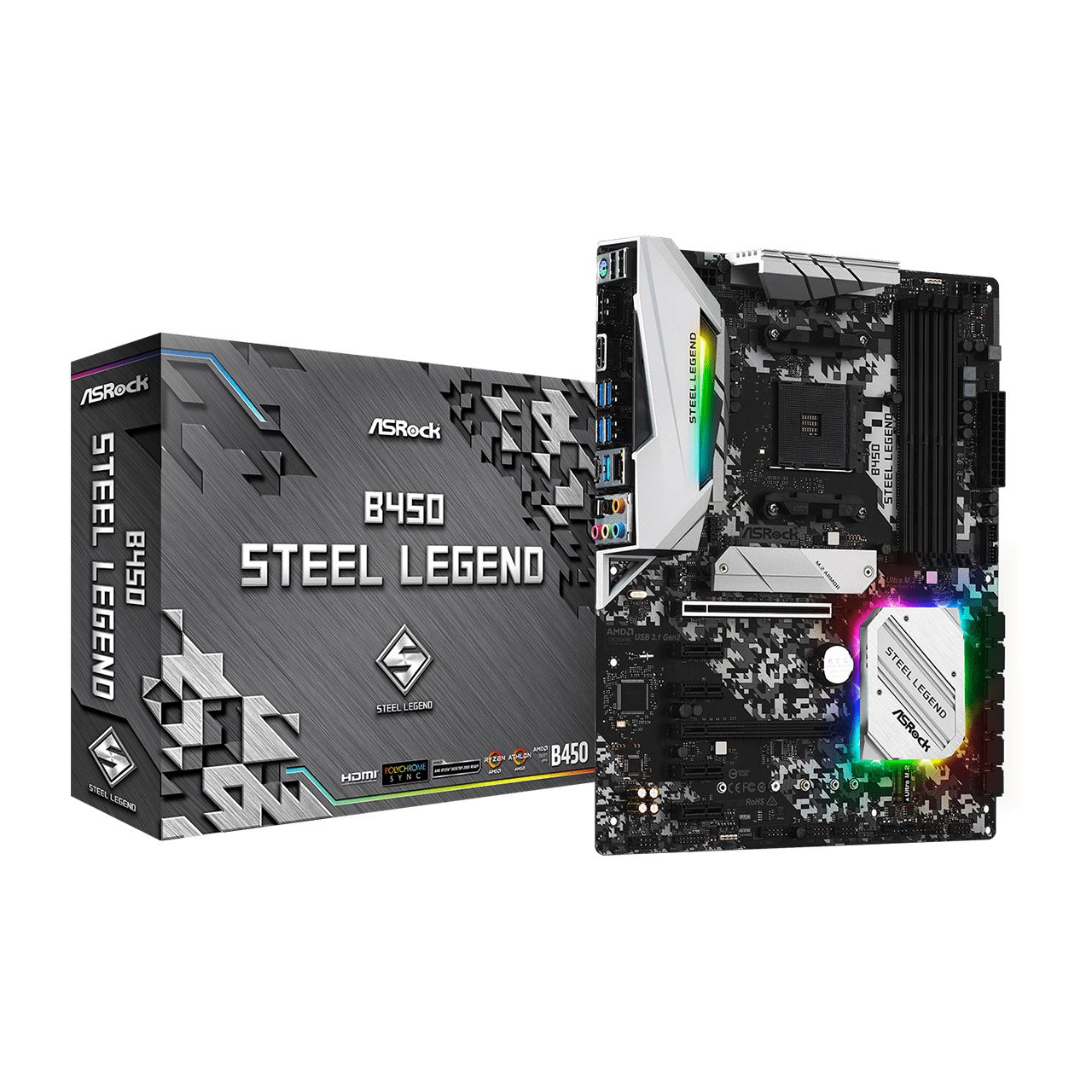

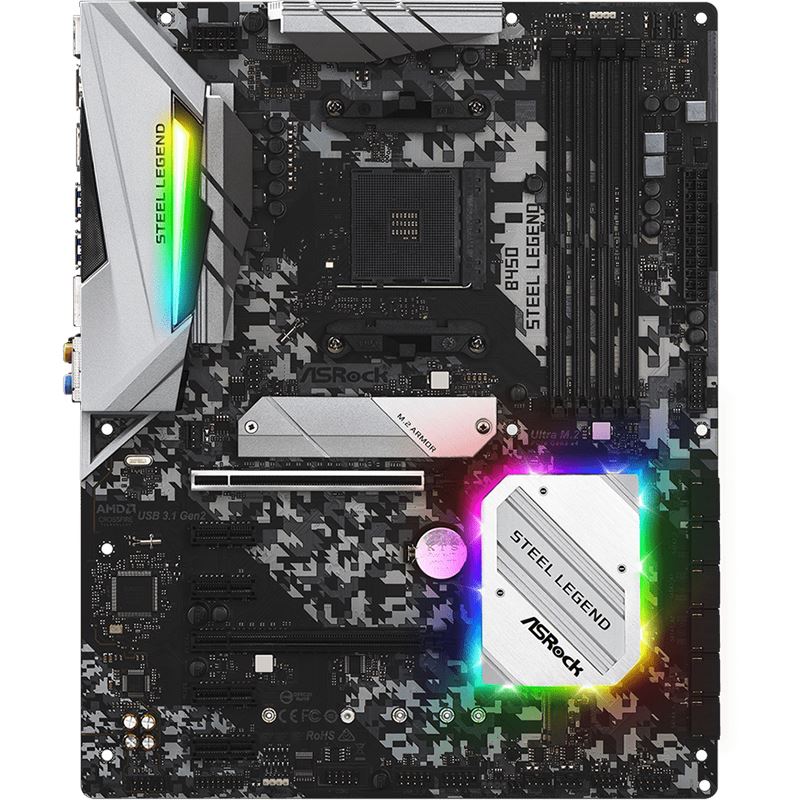

ASRock B450 Steel Legend, Sockel AM4
Das ASRock B450 Steel Legend basiert auf dem AMD-B450-Chipsatz und unterstützt AMD-Prozessoren für den Sockel AM4. Es verfügt über vier DDR4-Slots für bis zu 64 GB Arbeitsspeicher. Zur weiteren Ausstattung des B450 Steel Legend gehört eine CPU-abhängige Grafiklösung, ein PCIe-3.0-x16-Slots und vier PCIe-2.0-x1-Slots. Außerdem verfügt das B450 Steel Legend über 8-Kanal-Sound, eine Gigabit-LAN-Schnittstelle sowie sechs SATA3-, zwei M.2-Anschlüsse, USB-3.1-Typ-C-, USB-3.1-Typ-A- und USB-3.0-Ports.
Typ | Mainboard | ||
EAN | 4717677338065 | ||
Hersteller-Nr. | 90-MXBA00-A0UAYZ | ||
Sockel | AM4 | ||
Max. unterstützte CPUs | 1 | ||
Prozessor | Unterstützte Modelle | AMD® RYZEN Series Prozessoren für Sockel AM4 | |
Chipsatz | AMD B450 | ||
Steckplätze | PCIe x16 | 2 | |
PCIe x1 | 4 | ||
BIOS | AMI UEFI | ||
EFI-BIOS | Ja | ||
Formfaktor | ATX | ||
Verwendung | PC | ||
Netzteil | ATX12V (24-Pin + 8-Pin) | ||
Speicher | maximal | 64 GB | |
Anzahl der Sockel | 4x DDR4 | ||
unterstützter Speichertyp | SDRAM-DDR4 | ||
unterstützte Standards | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933, DDR4-3200 | ||
Kanäle | 2 | ||
Maximale Speicherranks | 8 | ||
ECC wird unterstützt | Ja | ||
Speichercontroller in CPU | Ja | ||
Maximale Datendichte | 8192 Mbit | ||
Anschlüsse (extern) | Tastatur (PS/2) | 1 | |
USB-C 3.1 | 1 | ||
USB-A 3.1 | 1 | ||
USB 3.0 | 4 | ||
USB 2.0 | 2 | ||
HDMI | 1 | ||
DisplayPort | 1 | ||
Mikrofon | 1 | ||
Line-In | 1 | ||
Line-Out | 4 | ||
S/PDIF-Out (optisch) | 1 | ||
RJ-45 | 1 | ||
Anschlüsse (intern) | SATA | 6 | |
M.2 | 2 | ||
M.2-Modul Key | M | ||
M.2 Schnittstelle | SATA, PCIe | ||
M.2 Länge | 42 - 110 mm | ||
RGB LED Header | 1 | ||
addressable RGB LED Header | 1 | ||
4-polig PWM-Lüfter | 5 | ||
Anschlüsse (optional) | USB 3.0 | 2 | |
USB 2.0 | 4 | ||
TPM | Ja | ||
SATA-Controller | AMD B450 | ||
ASMedia ASM1061 | |||
direkt nutzbare RAID-Level | 0, 1, 10 | ||
USB-Controller | AMD B450 | ||
Sound | Realtek ALC892 (unterstüzt Creative Sound Blaster Cinema 5) | ||
LAN | Realtek RTL8111H | ||
Features | Windows 10 ready, CrossFireX, Quad-GPU-CrossFireX | ||
Weitere Informationen | Um auch neueste Prozessorkerne zu unterstützen, ist evtl. ein BIOS-Update erforderlich. Die Grafikschnittellen des Mainboards sind nur bei Verwendung eines Prozessors mit integriertem Grafikchip nutzbar. | ||
Abmessungen | Breite: 244 mm x Tiefe/Länge: 305 mm |
